Avionics systems serve as the central nervous system of an aircraft, connecting every critical function from navigation to communication. Yet, even the most sophisticated systems encounter turbulence.
At DK Turbines, we’ve spent three decades diagnosing and resolving avionics challenges across commercial, private, and military aircraft. According to industry data, avionics-related issues account for a significant portion of unscheduled maintenance events, making them among the most common disruptions to flight operations.
Much like how pilots must anticipate changing weather patterns, aircraft operators need to prepare for inevitable avionics malfunctions. The difference between a minor delay and a grounded aircraft often comes down to proper troubleshooting methodology.
This article guides you through the most prevalent avionics issues we encounter at our maintenance facilities, offering proven diagnostic approaches and solutions developed through servicing over 15,000 aircraft systems annually.
Navigation System Failures

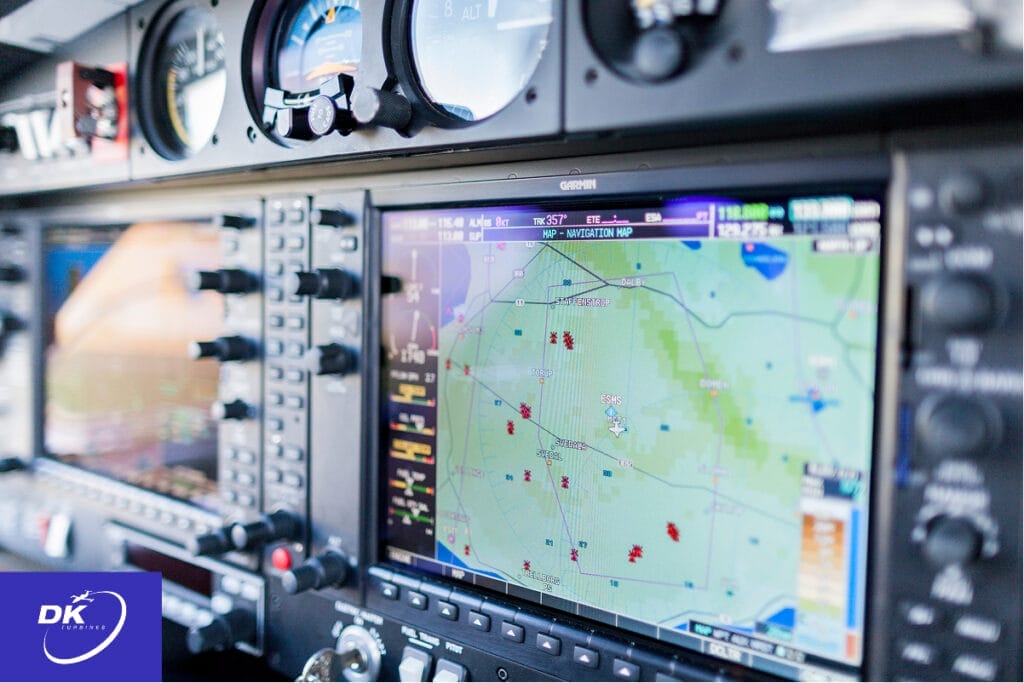

Navigation system failures represent the most frequently reported avionics issues among all avionics-related maintenance events. These critical systems include GPS, VOR/DME, INS, and the increasingly common glass-cockpit-integrated flight systems.
When navigation displays begin showing erroneous information or fail entirely, pilots often face decisions with significant safety and operational implications. Our first recommendation is to always follow the manufacturer’s emergency procedures while considering these troubleshooting steps:
Check for Database Updates
Many navigation system errors relate to outdated navigation databases. Modern aviation relies on regularly updated databases containing waypoints, approaches, and navigation aids. When these expire or become corrupted, navigation systems may display incorrect information or fail entirely.
Solution: Implement a rigorous update schedule for all navigation databases and maintain proper documentation. Many operators benefit from our automated update notification system, which has substantially reduced database-related issues among our client base.
Examine Power Source Integrity
Navigation systems often malfunction due to inconsistent power delivery. Voltage fluctuations or circuit interruptions may cause systems to reboot unexpectedly or display intermittent errors. Like tributaries feeding a river, power distribution systems must provide clean, consistent electricity to every avionics component.
Solution: Regular electrical system health checks should become part of your maintenance routine. Testing bus voltage stability under various loads can identify potential issues before they manifest as navigation failures. Our power integrity assessment protocol has proven highly effective in identifying pre-failure conditions.
Communication System Troubleshooting
Communication failures create some of the most stressful situations in aviation, particularly in congested airspace. A considerable portion of avionics maintenance events involve communication system malfunctions. When radios go silent or transmissions become unintelligible, following these steps can help restore communications:
Antenna and Coaxial Cable Inspection
Physical damage to antennas and degradation of coaxial cables account for a large proportion of communication system failures. These components endure extreme environmental conditions, from precipitation and temperature fluctuations to bird strikes and lightning.
Solution: Implement a visual inspection protocol for all external antenna installations during pre-flight walkarounds. Additionally, schedule comprehensive testing of antenna circuits, including standing wave ratio (SWR) measurements, as part of regular maintenance intervals. This approach considerably reduces unexpected communication failures among our commercial clients.
Audio Panel Integration Issues
Modern aircraft feature sophisticated audio management systems integrating multiple radios, intercoms, and warning systems. When configured incorrectly or experiencing internal failures, pilots may hear transmissions but remain unable to respond, or vice versa.
Solution: Develop a standardized audio panel testing procedure specific to your aircraft model. Our technicians utilize a comprehensive checklist addressing common failure points unique to each system architecture. This systematic approach identifies the root cause in most cases without component replacement.
Related Article: How to Minimize Aircraft Downtime with Reliable Replacement Parts

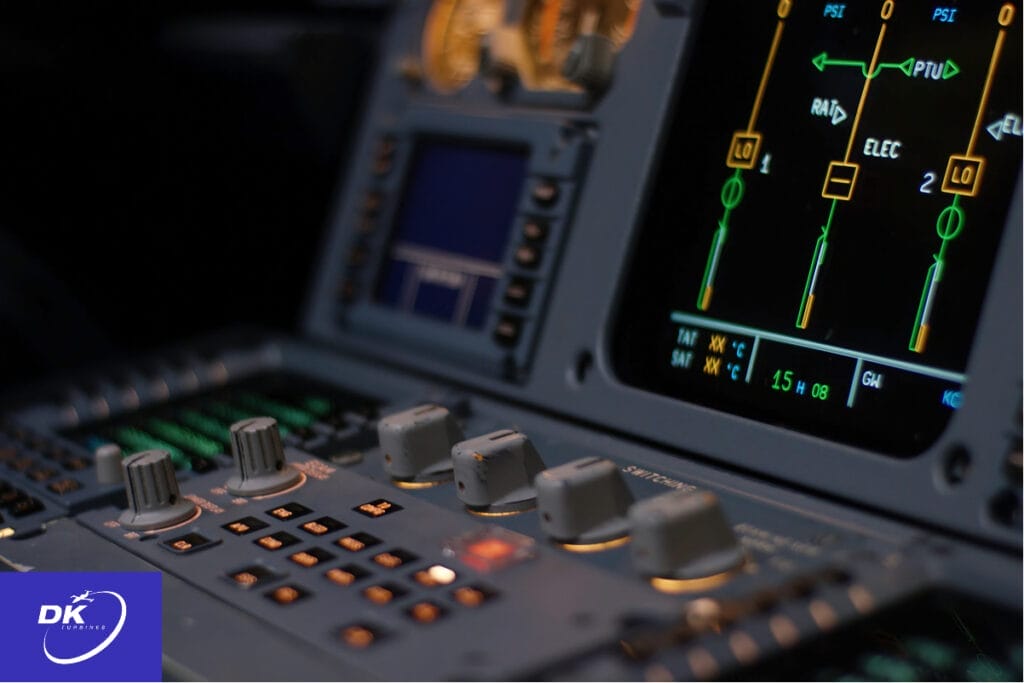

Display System Problems
As glass cockpit systems have become standard across the aviation industry, display-related issues have emerged as a significant maintenance concern. A notable portion of avionics maintenance events involve primary flight displays, multi-function displays, or engine indicating systems.
Screen Flickering and Blackouts
Intermittent display performance creates significant operational challenges and safety concerns. These symptoms often indicate deeper issues with graphics processors, power supplies, or cooling systems within the display units themselves.
Solution: Before replacing expensive display components, verify cooling system performance and ensure proper ventilation around avionics bays. Our thermal mapping process has revealed that many display failures correlate with localized heat accumulation. Simple adjustments to airflow patterns have extended display life by thousands of flight hours across our customer fleet.
Brightness and Contrast Issues
Difficult-to-read displays, particularly during transitions between daylight and nighttime operations, represent both an operational irritation and potential safety hazard.
Solution: Modern displays incorporate automatic brightness sensors that can become obstructed or fail over time. Regular cleaning and calibration of these sensors should be incorporated into maintenance routines. Manual brightness adjustment capabilities should be tested during each inspection to ensure functionality if automatic systems fail.
Data Bus Integration Challenges
The modern aircraft represents one of the most complex examples of integrated digital systems, with various avionics components communicating across standardized data buses such as ARINC 429, 629, or military standard 1553. When these communication pathways experience problems, seemingly unrelated systems may exhibit unusual behaviors.
Solution: Specialized bus analyzers allow maintenance teams to monitor real-time data traffic, identifying communication errors or bandwidth saturation issues. DK Turbines’ proprietary data bus health assessment protocol maps the entire avionics ecosystem, verifying proper integration between systems from different manufacturers. This comprehensive approach has proven highly effective in resolving complex, intermittent issues that traditional component-by-component troubleshooting missed entirely.
Built-In Test Equipment (BITE)
Nearly all modern avionics systems include Built-In Test Equipment (BITE), which automatically monitors internal performance and flags abnormal behavior. While not infallible, BITE systems provide a crucial first diagnostic step.
Solution: Incorporate BITE review into your standard troubleshooting workflow. It can quickly pinpoint fault zones and guide technicians toward the most probable causes—saving time and avoiding unnecessary component swaps.
Preventive Measures
At DK Turbines, our experience demonstrates that proactive maintenance dramatically reduces unscheduled avionics events. Operators implementing our recommended preventive protocols experience significantly fewer avionics-related delays compared to industry averages.
Key preventive measures include:
- Log all avionics anomalies, even minor ones, to spot early trends.
- Conduct performance trend analysis using flight logs, BITE reports, and system benchmarks.
- Implement environmental protection protocols for avionics bays, including humidity and temperature controls.
- Adopt structured software and firmware update schedules—especially for systems like FMS, EFIS, and ACARS.
- Monitor outputs from Flight Data Recorders (FDR) and Aircraft Communications Addressing and Reporting System (ACARS) to identify abnormalities before they escalate into faults.
For additional reference, FAA Advisory Circular AC 43.13-1B outlines standards and practices for avionics inspection, troubleshooting, and repair.
